Standing Seam Metal Roof Installation Guide

Standing seam metal roofs have become increasingly popular along the North Carolina coast for their durability and wind resistance. The installation process requires careful planning, proper substrate preparation, and skilled execution to deliver a roof that performs well in coastal weather. Understanding how standing seam metal roof installation works helps homeowners know what to expect, recognize quality workmanship, and make informed decisions about their roofing projects. This guide walks through each step of the process with straightforward explanations.

Preparation and Substrate Requirements

The foundation of any standing seam metal roof installation starts well before the first panel arrives. The existing roof deck must be sound, clean, and properly prepared.

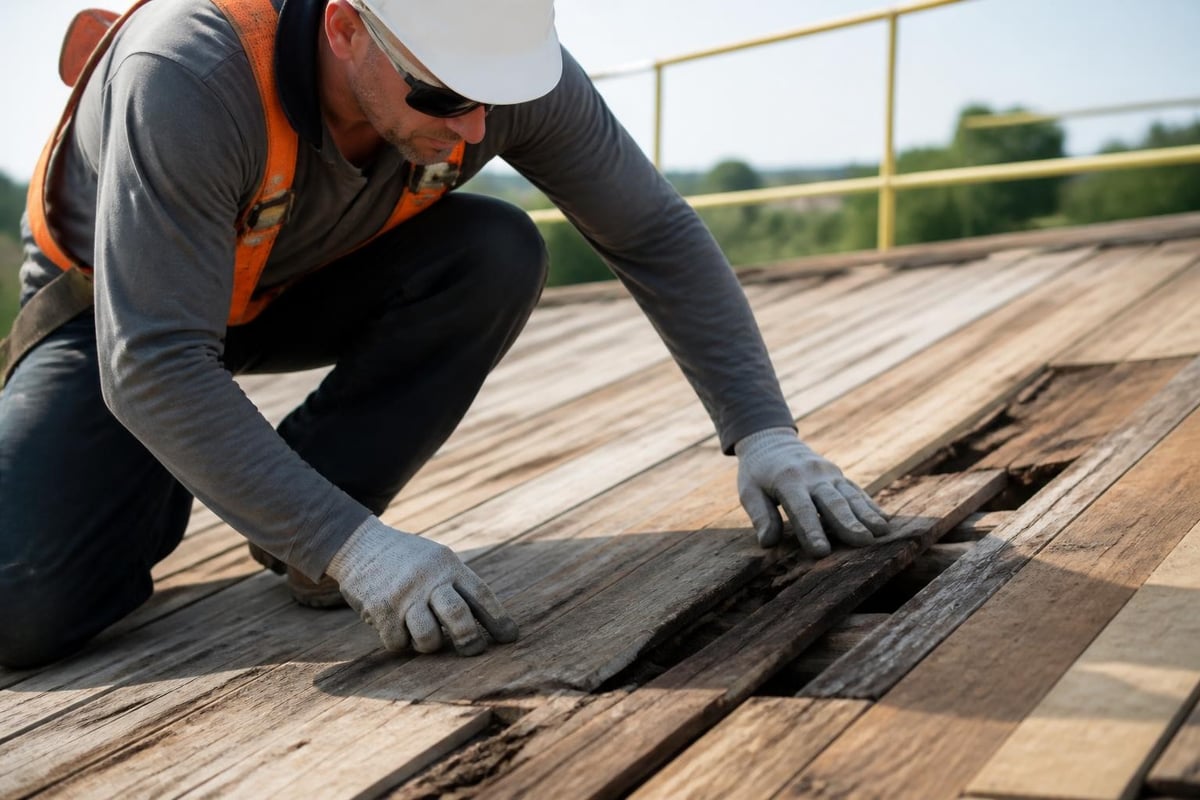

Substrate evaluation determines whether the current decking can support metal panels or needs reinforcement. Metal roofing is lighter than most shingle systems, but the deck still needs structural integrity to handle installation traffic, wind uplift forces, and long-term loads.

Most installations require:

• Clean, dry decking free from deteriorated sections
• Proper fastener spacing and secure attachment to rafters
• Flat, even surfaces without significant warping or dips
• Adequate ventilation pathways beneath the new system

Wood decking should be solid-sheathed plywood or OSB, typically 5/8-inch minimum thickness. Any damaged sections get replaced before installation proceeds. This preparation stage often reveals issues that would compromise the new roof if left unaddressed.

Underlayment Selection and Installation

High-quality underlayment creates a critical secondary weather barrier. For standing seam systems, underlayment choice affects both performance and warranty compliance.

Synthetic underlayment has largely replaced traditional felt in metal roof applications. It offers superior tear resistance, better UV stability during installation delays, and flatter surfaces that prevent panel distortion.

The underlayment gets installed horizontally from eave to ridge with proper overlap. Most manufacturers specify 4-6 inch side laps and 6-inch end laps. Fasteners should create a smooth surface without creating raised lines that telegraph through panels.

Coastal installations benefit from upgraded underlayment systems that handle wind-driven rain. The Metal Roofing Alliance provides detailed guidance on underlayment selection and ventilation considerations that address moisture management in different climates.

Panel Layout and Planning

Proper panel layout prevents installation problems and ensures the finished roof looks right. This planning happens before any panels reach the roof.

Panel run direction typically follows the slope line from eave to ridge. Panels should run perpendicular to the eave for optimal water shedding. On complex roofs, installers map out starting points, panel quantities, and seam locations.

Layout considerations include:

• Starting edge location (often away from primary views)
• Panel width selection based on roof dimensions
• Expansion and contraction accommodation
• Penetration placement and flashing coordination
• Ridge and hip panel terminations

Most standing seam panels come in 12, 16, or 18-inch coverage widths. Choosing widths that minimize cut panels creates cleaner finished appearances and reduces waste.

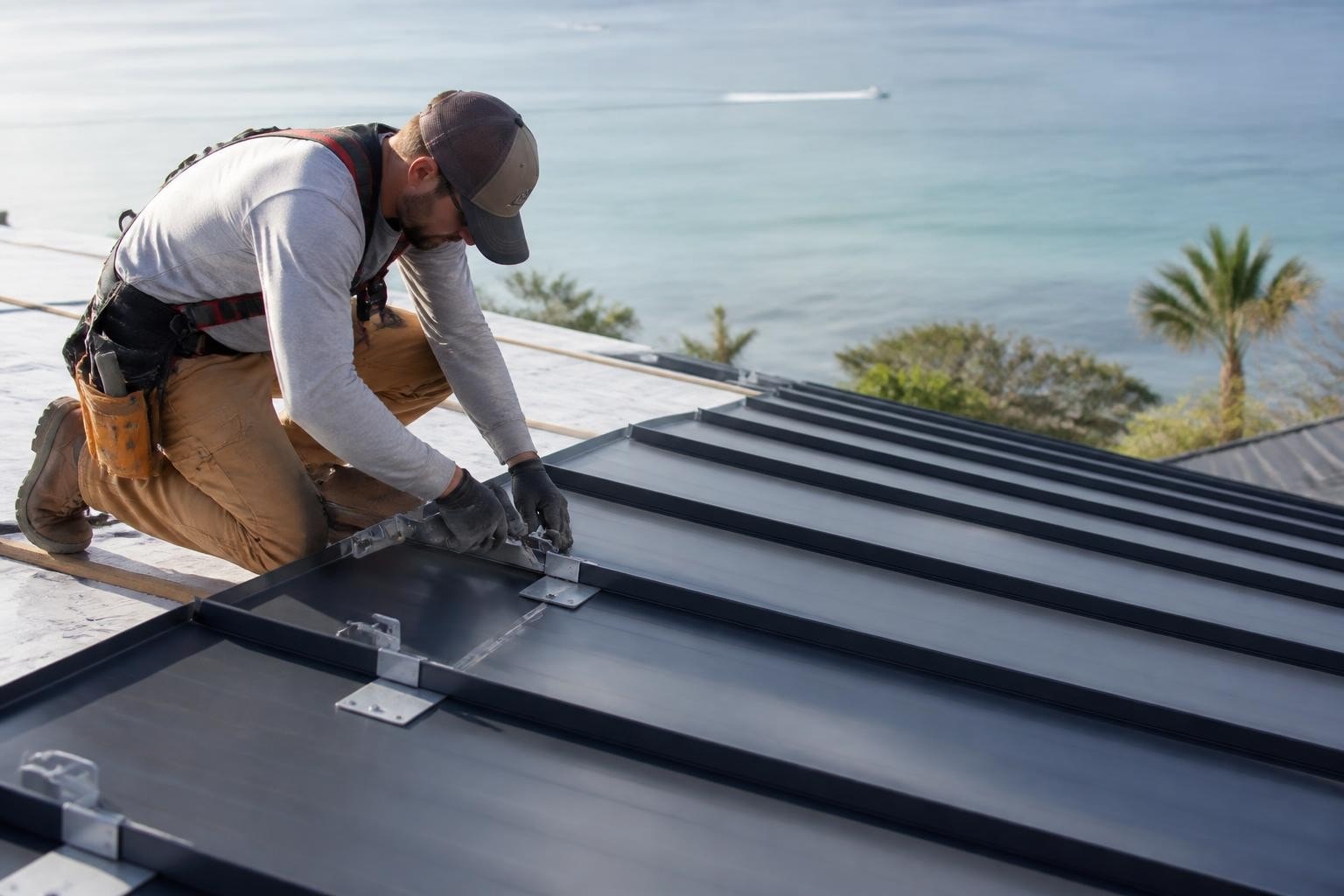

Clip Attachment and Spacing

The clip system allows panels to expand and contract while remaining secured to the deck. Clip spacing and attachment represent critical steps in standing seam metal roof installation.

Fixed clips anchor near the eave to establish a reference point. Floating clips up-slope allow thermal movement without creating stress points. This combination prevents oil-canning and panel distortion.

Standard clip spacing runs 24 inches on center along each panel, though high-wind coastal areas often require closer spacing. Building codes in Eastern North Carolina may specify enhanced attachment for wind resistance, particularly in HVHZ (High Velocity Hurricane Zones).

Each clip gets fastened through the underlayment into solid decking with appropriate fasteners. Screws must penetrate at least 3/4 inch into wood substrate. Over-driven fasteners compromise holding power; under-driven fasteners leave clips loose.

The NRCA provides technical guidance on proper clip installation, fastener selection, and substrate requirements that align with manufacturer specifications and building code requirements.

Panel Installation Process

With clips in place, panel installation begins. This stage requires coordination, precision, and attention to alignment.

First panel placement sets the standard for the entire roof. Installers typically start at the edge opposite the prevailing weather direction. The panel locks into the starter clips and gets checked for square alignment with the eave and rake.

1. Position panel over clips with proper overhang
2. Engage male leg into starter clip system
3. Verify alignment using string lines or laser levels
4. Ensure panel remains straight from eave to ridge
5. Prepare for seaming operation

Each subsequent panel follows the same sequence. The female leg of the new panel slides over the male leg of the installed panel. Proper engagement creates the interlock that will be mechanically seamed.

Seaming Operations

Mechanical seaming forms the weathertight joint between panels. This process requires specialized equipment and trained operators.

Single-lock seams fold the two panel legs together once. Double-lock seams create two 180-degree folds for superior weather resistance and structural performance. Most architectural standing seam systems use double-lock profiles.

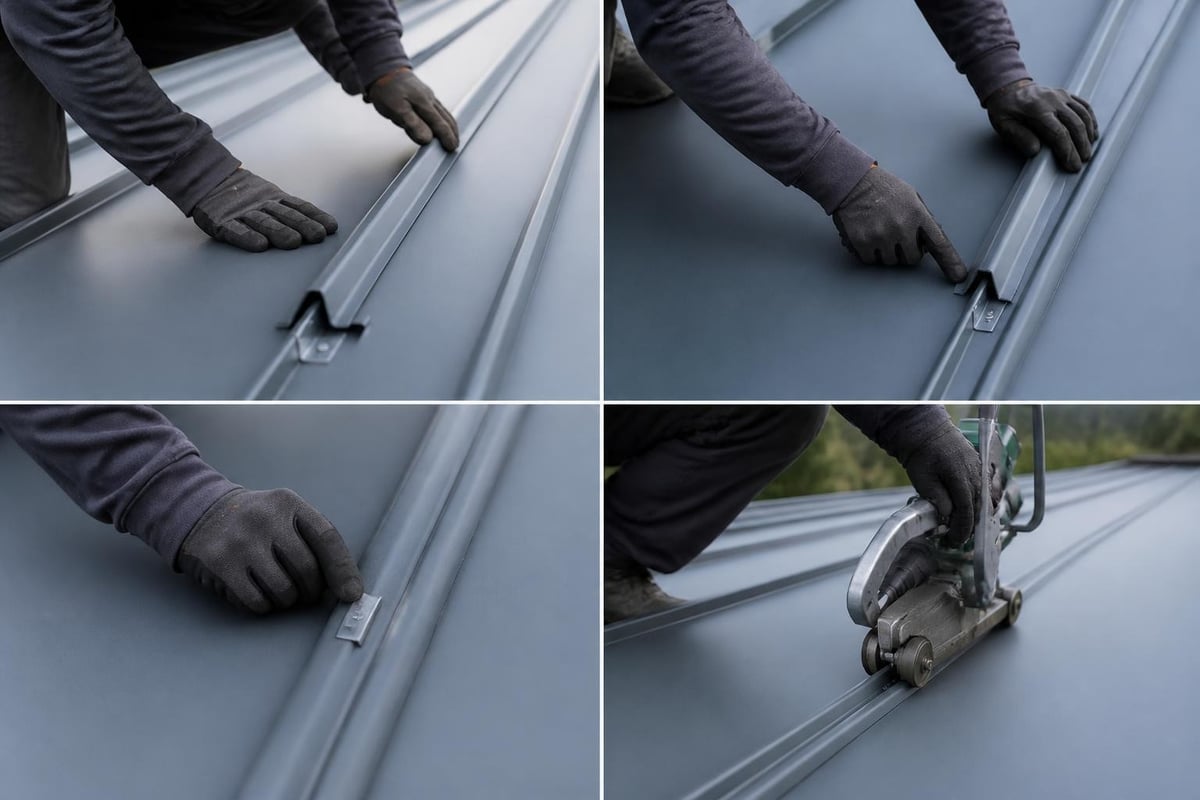

The seaming process follows each panel installation:

• Portable seaming cart travels along the panel seam
• Mechanical rollers progressively fold the panel legs together
• First pass creates initial fold (single-lock)
• Second pass completes double-lock configuration
• Operator maintains consistent speed and pressure

Quality seaming shows uniform height, consistent fold, and no distortion along the entire run. The Metal Construction Association’s seaming best practices detail proper seamer setup, operation techniques, and quality checkpoints that ensure reliable seam formation.

Poor seaming technique creates gaps, incomplete folds, or panel distortion. These defects compromise weather resistance and void warranties.

Flashing and Trim Installation

Flashings transition the metal roof system at edges, penetrations, and roof plane changes. These components require the same attention to detail as panel installation.

Eave trim covers the panel ends at the bottom edge and creates a finished appearance. It typically installs before panels and integrates with the clip system.

Rake trim encloses the sloped edges. Side-wall flashings handle roof-to-wall transitions. Each flashing type serves specific weatherproofing functions.

Penetration flashings accommodate vents, chimneys, and skylights. These components must integrate with the clip system and panel seams without compromising thermal movement. Many metal roof design guides include detailed flashing drawings and installation sequences that address common penetration scenarios.

Ridge and Hip Details

The ridge represents the most visible seam on any roof. Proper ridge cap installation requires careful measurement and secure attachment.

Ridge caps cover the panel terminations at the peak. Most systems use pre-formed ridge components that match the panel profile. Installation involves:

• Confirming panel terminations align properly at ridge
• Installing closure strips or foam to prevent weather infiltration
• Securing ridge cap with concealed or exposed fasteners
• Ensuring proper overlap at ridge cap joints

Hip caps follow similar principles on sloped intersections. Both details must allow thermal movement while maintaining weathertight seals.

Coastal installations face particular challenges with wind-driven rain at ridge lines. Enhanced sealing methods and proper fastener spacing help these details perform in severe weather.

Quality Control and Testing

Professional standing seam metal roof installation includes verification steps throughout the process.

Panel alignment checks happen continuously. Installers use string lines, levels, and measurements to ensure panels remain straight and properly spaced. Small errors compound across large roof areas if not corrected immediately.

Seam inspection confirms proper fold formation. Visual inspection looks for uniform height, complete engagement, and absence of gaps. Some installers use simple tools to verify seam dimensions match specifications.

Testing procedures may include:

• Walking the roof to check for loose panels or clips
• Inspecting all flashings for proper installation
• Verifying fastener counts and spacing
• Documenting completed installation with photos

The IBHS provides research-based guidance on metal roof testing standards and installation practices that improve wind and hail resistance. These recommendations help verify that completed installations meet performance expectations.

Homeowners working with contractors should expect documentation showing proper installation sequences were followed. For coastal North Carolina properties, this documentation becomes particularly valuable when filing insurance claims or requesting roof reports after storm events.

Coastal Installation Considerations

Eastern North Carolina's coastal environment creates specific challenges for standing seam metal roof installation.

Salt air exposure requires corrosion-resistant materials. Most coastal installations use aluminum panels or steel with heavy-gauge coatings like Galvalume Plus or zinc-aluminum-magnesium alloys. Standard galvanized steel performs poorly in salt environments.

Wind loads exceed inland requirements. Panel clips need closer spacing, and fastener schedules follow enhanced wind zone specifications. Many coastal installations incorporate structural standing seam systems rated for 180+ mph wind speeds.

Hurricane preparation includes:

• Confirmed attachment to meet current wind codes
• Enhanced edge securement along eaves and rakes
• Proper flashing integration to prevent blow-off
• Verified clip engagement on every panel

Local building departments in Wilmington, Topsail, and Surf City enforce Florida Building Code requirements in some zones. These standards mandate third-party inspection and engineering documentation for metal roof installations in high-wind areas.

Wind-resistant standing seam installation details for coastal regions: enhanced clip spacing, structural panel profiles, reinforced edge attachment, and corrosion-resistant material specifications

Ventilation and Condensation Control

Proper ventilation prevents condensation issues that can develop beneath metal roofing. Temperature differentials between the metal surface and conditioned spaces below create moisture risk.

Continuous ridge venting works well with standing seam profiles. Soffit vents at eaves create airflow paths that remove moisture-laden air. Balanced intake and exhaust ventilation prevents pressure imbalances.

Unvented or poorly vented installations trap moisture against the underside of panels. This condensation drips onto insulation, ceiling materials, and structural components. Over time, moisture damage compromises the entire roof assembly despite the metal panels remaining intact.

Coastal humidity makes ventilation even more critical. Summer conditions with high outdoor humidity and air-conditioned interior spaces create significant moisture drive.

Common Installation Challenges

Even experienced crews encounter challenges during standing seam metal roof installation. Understanding these issues helps homeowners recognize when problems arise.

Panel distortion or oil-canning appears as wavy panels that reflect light unevenly. Causes include over-tightened clips, inadequate panel thickness for the span, or poor seaming technique. Once installed, correcting oil-canning often requires panel replacement.

Thermal movement complications occur when fixed clips are used improperly or panels are over-constrained. Metal expands and contracts significantly with temperature changes. Restricted movement creates stress that buckles panels or pulls fasteners loose.

Alignment errors compound across panel sequences. A panel that's 1/4 inch out of square at the eave becomes increasingly misaligned toward the ridge. Careful layout and frequent checking prevent these cumulative errors.

Installation Timeline and Weather Factors

Standing seam metal roof installation timelines vary based on roof complexity, weather conditions, and crew experience.

A typical residential installation progresses:

• Day 1: Deck inspection, repairs, underlayment installation
• Day 2-3: Clip installation, panel delivery, initial panel placement
• Day 3-4: Panel installation and seaming
• Day 4-5: Flashing, trim, and final details

Complex roofs with multiple planes, valleys, or penetrations extend these timelines. Weather interruptions add delays, particularly in coastal areas with frequent afternoon storms.

Rain stops installation immediately. Wet underlayment becomes slippery and unsafe. Moisture trapped beneath panels during installation can cause long-term problems. Professional crews monitor forecasts and adjust schedules to avoid weather delays.

Wind above 20-25 mph makes panel handling difficult and dangerous. Large panels act as sails that can pull installers off balance or damage panels during positioning. Safe installation requires calm conditions.

Material Selection Impact on Installation

Panel profile, thickness, and material choices affect installation procedures and difficulty.

Narrow-seam profiles (12-inch coverage) require more clips and seaming operations than wider panels. More seams mean longer installation times but often create more refined appearances.

Structural versus architectural systems differ in attachment methods. Structural standing seam panels attach directly to purlins or structural supports. Architectural systems install over solid decking. The distinction affects substrate requirements and installation sequences.

Metal gauge influences handling and seaming:

• 26-gauge steel: Standard residential applications, easier handling
• 24-gauge steel: Enhanced durability, slightly stiffer panels
• 22-gauge steel: Premium applications, requires more seaming force

Thicker gauges resist oil-canning better but require more powerful seaming equipment. Material hardness (affected by alloy and coating) also influences seaming difficulty.

Cost Factors in Professional Installation

Standing seam metal roof installation costs reflect material quality, roof complexity, and regional labor rates.

Eastern North Carolina installation pricing typically includes:

• Tear-off and disposal of existing roofing (if applicable)
• Deck repairs and preparation
• Premium underlayment systems
• Panel materials and specialized trim
• Professional installation labor
• Permits and inspections

Material costs vary significantly between standard and premium systems. A basic painted steel standing seam roof costs less than copper or zinc systems but still represents substantial investment compared to asphalt shingles.

Labor costs reflect the specialized skills required. Experienced metal roof installers command higher rates than general roofing crews, but their expertise prevents costly mistakes that compromise performance.

Homeowners in Hampstead, Wilmington, and surrounding coastal communities should expect detailed proposals that break down costs by component. Transparent pricing helps compare proposals and understand value differences between installation approaches.

Standing seam metal roof installation combines technical precision with skilled craftsmanship to create durable, weather-resistant roofing systems. The process demands proper planning, quality materials, and experienced installers who understand coastal conditions. If you're considering a metal roof for your Eastern North Carolina home or need guidance on roof options that make sense for your situation, NC Roofs provides honest assessments and quality installation focused on performance, not upsells.
